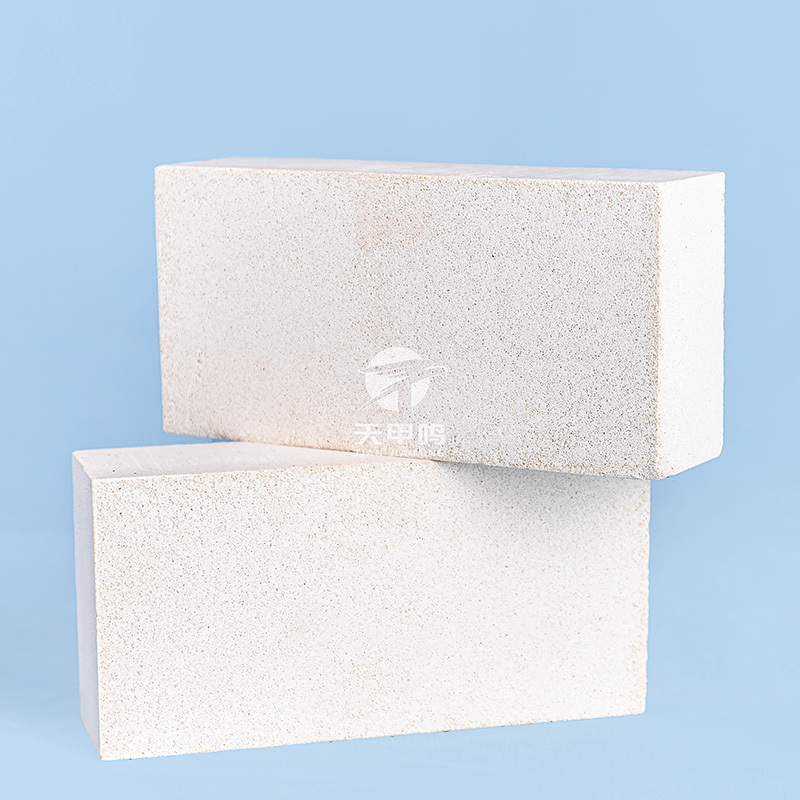

Mullite insulation bricks


This product is mainly a lightweight refractory material with mullite as the main crystalline phase,which can directly come into contact with flames . It has the characteristics of high temperature resistance,good thermal shock stability,low thermal conductivity,and significant energy-saving effects.Suitable for lining and insulation layers of kilns in industries such as metallurgy , ceramics , petroleum,and chemical engineering.

  • This product is mainly a lightweight refractory material with mullite as the main crystalline phase,which can directly come into contact with flames . It has the characteristics of high temperature resistance,good thermal shock stability,low thermal conductivity,and significant energy-saving effects.Suitable for lining and insulation layers of kilns in industries such as metallurgy , ceramics , petroleum,and chemical engineering.

    Item MG23 MG26 MG28 MG30 MG32
    Al₂O₃%≥ 40 55 65 70 77
    Fe,O₃%≤ 1.0 0.8 0.7 0.6 0.5
    Bulk Density g/cm³≤ 0.55 0.85 0.95 1.05 1.35
    Mpa ≥ 1.0 2.5 3.0 3.0 3.5
    Heating permanent line change %
    T/℃×12h
    Test Temperature 1200℃ 1400℃ 1510℃ 1620℃ 1730℃
    Xmin~Xmin 0.5~-1
    Thermal Conductivity W/m·k Average Temperature 350±25℃≤ 0.20 0.30 0.37 0.44 0.60
